Home > Products > Explosion Proof Dome Camera

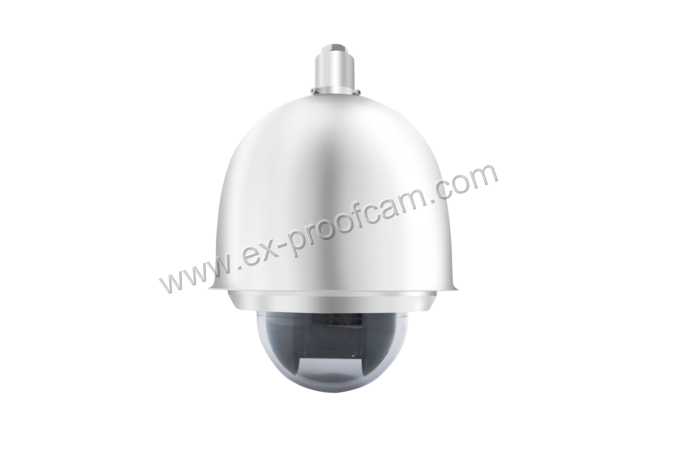

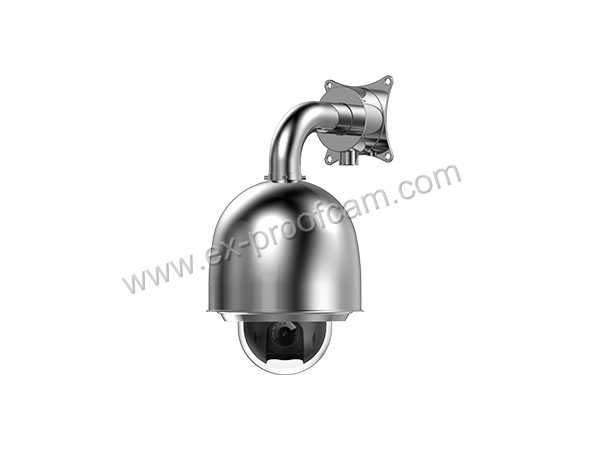

Explosion Proof Dome Camera

2MP 26X Explosion Protected Starlight Dome Camera

Explosion proof Certified
Applicable for Zone 1, 2, 21, 22
Stainless steel 304 or 316L enclosure
Weather Proof IP68
Description: 2MP 26X Explosion Protected Starlight Dome Camera
INQUIRY EMAIL

The Zuoan ZAT630 Explosion protected dome camera is designed according to the highest national industry standards for safe operations in potentially hazardous environments. The ZAT630 is certified to national standards for hazardous areas and comes in multi-chambered housing composed of stainless steel 316L with temperatures ranging from -20C° to +60C°. The explosion protected camera housing also has an IP68 4X ratings making the camera resistant to harsh offshore and onshore conditions. The explosion protected camera can be easily installed by a single installer, incorporate Ex Power over Ethernet (PoE), providing flexibility of network design, robust power management, and saving cost in the installation of cable and infrastructure.

FEATURES:

·Highest protection: IP68

·Double ex-proof marking: :EX d & Ex tD

·Stainless steel304/ 316L housing

Certificate

Certificate Mark	ExdⅡC T6 Gb/Ext DA21 IP68 T80°C
Standards	Q/320412 ZAF026-2015

Mechanical

Housing	Stainless steel 304 or 316L
IP	IP68
Cable thread hole	1pcs G3/4 or NPT3/4
Wiper	No

Electrical

Voltage	AC24V ± 25% or DC24V±25% or POE(IEEE802.3at)
Power	8-20W

Ambient

Ambient temperature	-20 to +60℃
Air pressure	80Kpa to 106Kpa
Relative Humidity	≦95% (no condensation)

Pan & Tilt

Horizontal	360°
Speed	Horizontal 0.1-200°/s, Vertical 0.1-120°/s
Vertical	-90 to +0
Cruise Scan	Support
Keep watch	Support
Preset	64/128/255
Resume function	Support
Auto Cruise	Support
Auto Scan	Support

Camera

Image Sensor	1/2.8” Progressive Scan CMOS
Effective pixel	1920(H)x1080(V), 2Megapixels
Min. Illumination	Color 0.001Lux/F1.5 B/W: 0.0005Lux/F1.5
Shutter Time	1/25 sec~ 1/10,0000 sec
Day&Night	Auto ICR
S/N Ratio	More than 52dB
Support	White balance, auto gain control

Lens

Focal Length	5-130mm, 26X optical
Aperture Range	F1.5-F3.8
Angle of View	56.9-2.9 degree(Wide-Tele)
Min. Working Distance	100mm-1000mm(Wide-Tele)

Network

Network Interface	1pcs of RJ45, support 10M/100M/1000M
Video Compression	Ultra 265, H.265, H.264, MJPEG
Audio Compression	G.711
Voice Intercom	Support
Stream	Support three streams
Internet Protocol	IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP
Time Display	Support
Compatible Integration	ONVIF( profile S, profile G), API
Security	Password protection, Multiple access control

Control

Camera address	on/off （0-254）
Focus Mode	Auto/Manual/One touch
Gain	off/ lower/ higher
Slow shutter	X256 MAX
White Balance	Auto white balance 1/auto white balance 2/Manual/auto
Private	Off/ Mode 1/ Mode 2
Video	3D DNR, mirror, brightness, Contrast, Sharpness adjustable
Digital zoom	X16
Zoom display	on/off
ZCF control mode	mode 1, mode 2
