Explosion Proof Enclosure

  • ZAJ340 series Explosion Proof Box for Hazardous Area

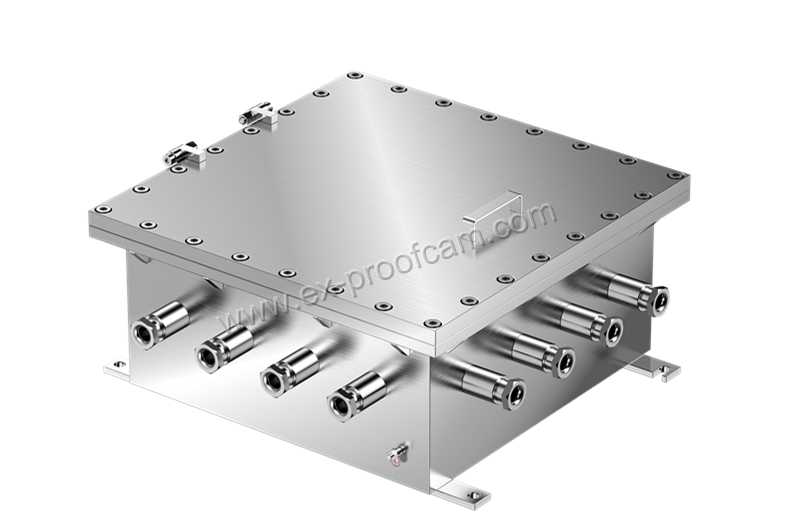

ZAJ340 series Explosion Proof Box for Hazardous Area

ZAJ340 series Explosion Proof Box for Hazardous Area

  • Explosion proof Certified
  • Zone 1,2
  • Stainless steel 304 or 316L enclosure
  • Weather Proof IP68
  • Description: ZAJ340 series Explosion Proof Box for Hazardous Area
  • INQUIRY   EMAIL

ZAJ340 explosion proof  box can apply for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gas, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. It’s applicable for refining and chemical industry, oil extraction, gas production, fireworks production, grain production and storage, petrol station and so on.

The ZAJ explosion proof  box is a mature explosion-proof monitoring device. A certain volume of electrical equipment can be installed inside the product. The stainless steel casing can provide strong protection and is widely used in environments with flammable and explosive gases and dust.

Feature
·Stainless steel 304 or 316L
·Easy to install and maintain
·Mainly for NVR, Switch
·Applicable for Gas Zone 1, Zone 2,Class II A, IIB, IIC, T1-T6 group) Dust Zone 21, 22.


Certificate

Certificate Mark

Exd [ib] BT6 Gb/Ex tD A21 IP66 T80

Certificate No

CNEx20.3172X

Standards

Q/320412ZAF163-2020

Mechanical

Housing

Stainless steel 304 or 316L

IP

IP66IP68

Cable thread hole

M27×1.25 or M25×1.5 or M24×1.5or M40×1.5

Electrical

Voltage

AC85VAC265V

Current

≦500mA

Power

50W

Surge Protect

Optional, TVS6000V surge protect

Optical Fiber output

Optional, multimode or single mode

Fiber distance

25km

Ambient

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

General

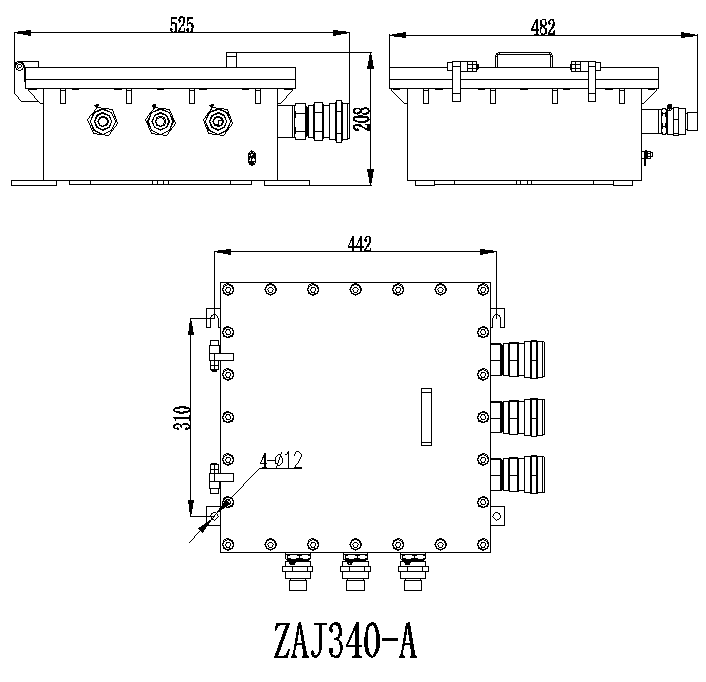

ZAJ340-A

ZAJ340-B

ZAJ340-C

Overall sizemm

575×482×208

475×432×196

550×574×248

Inner Sizemm

350*350*150

300*300*150

400*380*190

Weight

53.1Kg

38.2Kg

66.7Kg
