Explosion Proof Monitor

  • ATEX IECEx Explosion-proof Monitor for Oil and Gas
  • ATEX IECEx Explosion-proof Monitor for Oil and Gas
ATEX IECEx Explosion-proof Monitor for Oil and GasATEX IECEx Explosion-proof Monitor for Oil and Gas

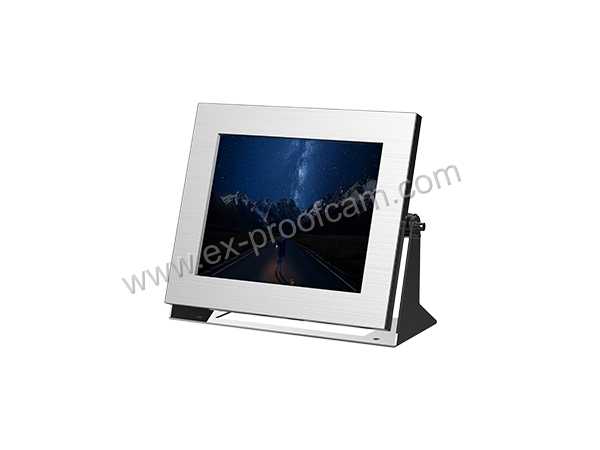

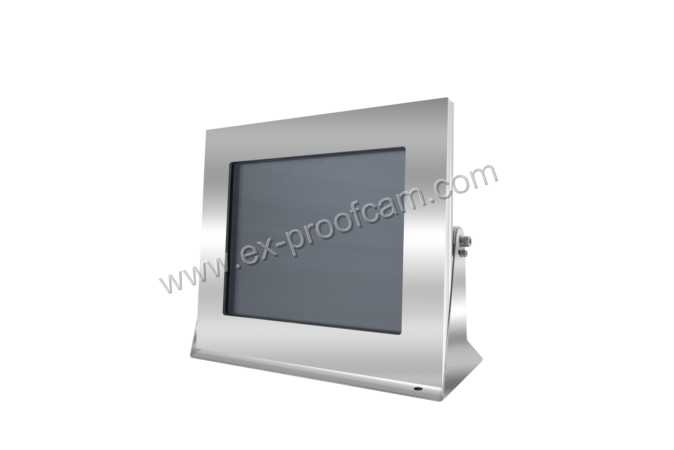

ATEX IECEx Explosion-proof Monitor for Oil and Gas

  • ATEX, IECEx Certified
  • Max resolution: 1280X1024
  • Stainless steel 304 or 316L enclosure
  • Weather Proof IP68
  • Description:
  • INQUIRY   EMAIL

CZ400-□ series Explosion-proof monitor  is a new generation of Explosion-proof monitor, it adopts advanced manufacturing process, with a mature quality management system as a guarantee, the product quality, performance and appearance are in leading position. The product can be used in flammable and explosive gas or flammable dust environment, to achieve the purpose of monitoring the hazardous area. apply for gas zone 1, 2, and dust zone 21, 22


FEATURES:
·ATEX, IECEx Certified;
·Stainless steel 304 or 316L
·Enclosure protection: IP68
·Outer dimension: 473*396*200mm
·Screen dimension: 17 inch
·Max resolution: 1280X1024

Certificate

ATEX Certificate Mark

Ⅱ2G Ex db ⅡC T6 Gb,

Ⅱ2D Ex tb ⅢC T80 ºC Db

Mechanical

Housing

Carbon steel, Stainless steel 304 or 316L

IP

IP68

Cable thread hole

M25*1.5 or M27*1.25

Electrical

Voltage

AC100-240V

Power

50W

Surge Protect

Optional, TVS6000V surge protect

Ambient

Ambient temperature

-25 to +60℃ / -45 to +80℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

Function

Screen LED

17inch

Resolution

1280*1024

Aspect Ratio

4:3

Size

473*200*396mm

Weight

48kg

Brightness

250cd/m2

Contrast

1000:1

Response Time

5ms (G. To G)

Color

16.7M

Video system

PAL/ NTSC

Panel life

30,000 hours

View Degree (H/V)

170°/160°

Connector Port

HDMI or VGA,or BNC, S-VHS, RGB, CVBS

Cable

integrated cable *2m long
