Explosion Proof IR Camera

  •  Explosion Proof IR Cameras with vari-focus lens for rigs
 Explosion Proof IR Cameras with vari-focus lens for rigs

Explosion Proof IR Cameras with vari-focus lens for rigs

  • Explosion proof Certified
  • 2.8 ~ 12mm, Motorized Zoom Lens
  • Stainless steel 304 or 316L enclosure
  • Weather Proof IP68
  • Description:
  • INQUIRY   EMAIL

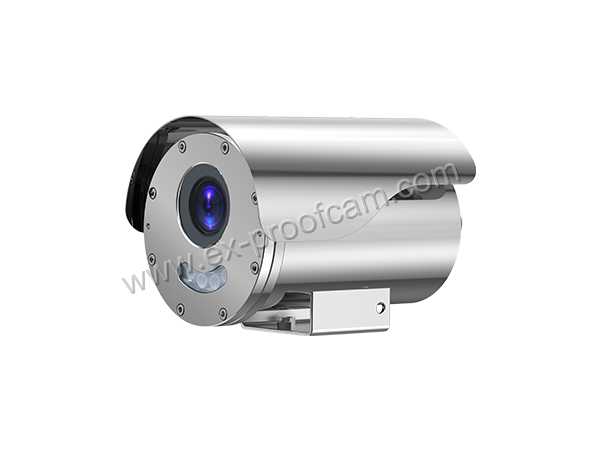

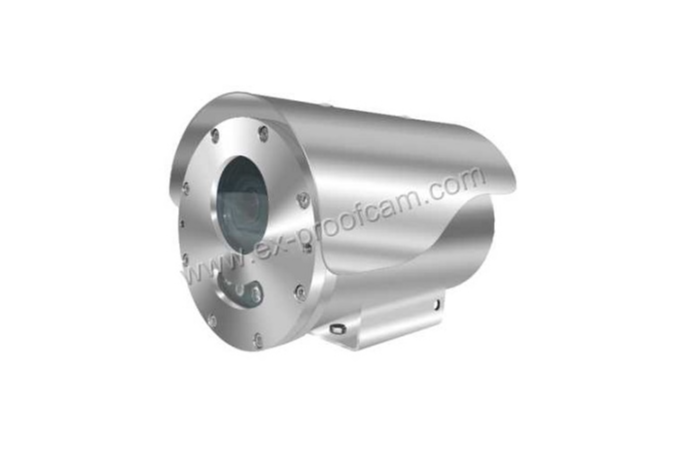

CZ109 is our latest explosion proof cameras with IR. CZ109 explosion proof enclosure is made of stainless steel 304 and 316L . Its window adopts toughened glass.  It can meet the demand of application in hazardous environment such like gas zone 1, 2; dust zone 21,22 .It load with 2MP,2.8~12mm, Motorized Zoom Lens camera core. This camera equipped with smart IR, up to 60m night vision distance.It support POE power supply.


FEATURES:
· stainless steel 304 or 316L corrosion proof for marine area
· Enclosure Protection: IP68
· Exd II CT6 Gb/ Ex tD A21 IP68 T80℃
· Fit for gas zone 1, zone 2, dust zone 21, 22
· power input: DC12V or POE power supply
· With lights for night vision: 0-60m distance
· Camera: 2MP vari-focal bullet camera
· Motorized lens 2.8-12mm

Model

ZAF1091-AHD

Atmospheric pressure

80KPa110Kpa

Ambient Temperature

–20°c+60°C

Relative Humidity

≤95% +25°c

Ex-proof mark

Exd II CT6 Gb/ Ex tD A21 IP68 T80

Ingress Protection

IP68

Housing Material

Stainless Steel 304 or 316L

Image Sensor

1/2.8" Progressive Scan CMOS

Max. Image Resolution

2.0 megapixel

Image size

1920*1080

Frame date

30fps(60Hz); 25fps(50Hz)

Min. Illumination:

0.001Lux @(F1.2,AGC ON),

0 Lux with IR

Shutter

Auto; 1/25s~1/50000s(PAL); 1/30s~1/50000s(NTSC)

Lens

2.8 - 12 mm, motorized lens

Lens mount

D14

Day& Night:

IR cut filter with auto switch

S/N

>52dB

Image Enhancement

3D DNR

AGC

Support

Auto White Balance

Support

HLC, BLC

Support

Freeze

Support

Mirror

Support

Sharpness

Support

Smart IR

Support

Motion Detection

Support

Privacy Mask

Support

Defect Correction

Auto

OSD

OSD(COC control)

Language

English

Video output

AHD/TVI/CVI/CVBS

Image system

PAL/ NTSC

Light night vision

0-60m

Voltage Input

DC 12V±15%,POE

Power consumption

7.5w Max

Cable output

Integrated cable, 2m long

Cable gland

1pcs G3/4 or M25*1.5

Overall dimension

319*144*168mm (LxWxH)

Net weight

7.5 kg
