Explosion Proof PTZ Camera

  • Auto Tracking Explosion Proof CCTV Camera for Oil & Gas industry
Auto Tracking Explosion Proof CCTV Camera for Oil & Gas industry

Auto Tracking Explosion Proof CCTV Camera for Oil & Gas industry

  • ATEX, IECEx Certified
  • Applicable for Zone 1, 2, 21, 22
  • Stainless steel 304 or 316L enclosure
  • IR distance 150M
  • Description: Auto Tracking Explosion Proof CCTV Camera for Oil & Gas industry
  • INQUIRY   EMAIL

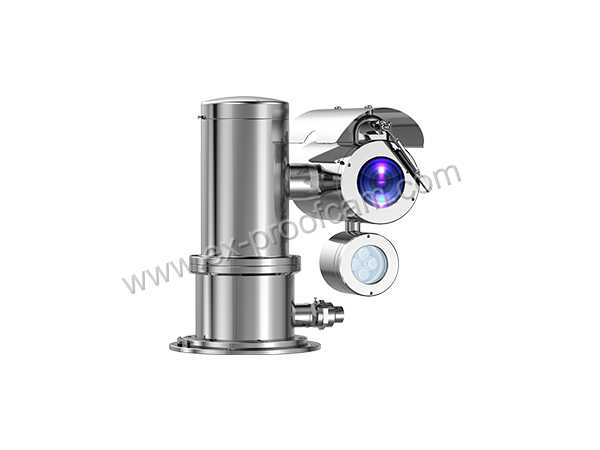

ZAT762 is a ZUOAN new designed explosion proof CCTV camera, It consist of explosion proof camera(housing)、pan tilt、wiper and IR .The explosion proof cctv camera can apply for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist.It is devised to prevent the intake of flammable dust and sparks which might occur in those areas.

The camera is made of stainless 304 or 316L which can meet explosion proof demand. The structer is different from ZAT670. The IR part is located on the top of camera housing which is more economic.The cameras provide extremely crisp video with up to 2 million effective pixels, 20X/30x optical zoom, True Day/Night, and True WDR for continuous surveillance in both hazardous-area and safe-area applications. The IR distance can reach 150M.


FEATURES:

·Explosion Proof Approved;
·1080p with 1/2.8” progressive CMOS
·Applicable for Gas Zone 1, Zone 2, 21, 22.
·Stainless steel 304 or 316L enclosure
·Weather Proof IP68(1.2m/45min)
·Wide voltage input: AC100-240V or AC24V
·Strong tempered glass, fit for hydrofluoric acid area
·Intelligent window defroster design
·Auto temperature adjust kit for aggressive area
·High precision wiper , support user-defined
·Auto temperature adjust kit for aggressive area
·Intelligent long focal speed limit, fit for long distance monitoring

Certificate

Certificate Mark

Ex dⅡCT6 Gb/ Ex tD A21 IP68 T80

Certificate No

CNEx18.3765X

Mechanical

Housing

Stainless steel 304 or 316L

Surface

Optional electro-polish or painting

Ingress protection

IP68 (1.2m/ 45min)

Cable thread hole

M25×1.5 (or M27*1.25)

Electrical

Voltage

AC100VAC240V or AC24V

Power

50W/70W (with thermostat)

Optical Video signal

1-way video output

Optional network signal

RJ45

Optical Audio

1-way input, 1-way output

Optical Alarm

2-way alarm input, 1-way alarm output

Address code:

0/1

Night vision lights

150m distance

Trail cable

2m integrated cable

Ambient

Ambient temperature

-25°+60°/-40℃+60℃

Air pressure

80Kpa to 110Kpa

Relative Humidity

≦95% (no condensation)

Communication

Communication type

RS485

Protocol

Pelco-D, Pelco-P

Communicate Rate

2400~19200bps adjustable

485 Communication

Support

Pan & Tilt

Horizontal

360°

Horizontal speed

0.1-45°/s

Vertical

-90 to +90°

Cruise Scan

Support

Keep watch

Support

Preset

64/128/255/300

Auto Scan

Support


Camera

Image Sensor

1/2.8" interline-transfer CCD

Effective pixel

2MP

2MP

Lens

4.7-94mm, 20X optical

4.5-135mm, 30x optical

Aperture Range

F1.6-F3.5

F1.6-F4.4

Angle of view

61.4-29 degree (wide -tele)

65.1-2.34 degree (wide -tele)

Min. Illumination

Color 0.05Lux   B/W: 0.01Lux

Day&night

Auto/ Color/ BW

S/N ratio

52dBAGC off

Gain

off/ lower/ higher

Digital Zoom

12X

White Balance

Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp

3D DNR

Support

BLC

ON/OFF

Image setting

Mirror, Saturation, Brightness, Contrast, Sharpness adjustable

General

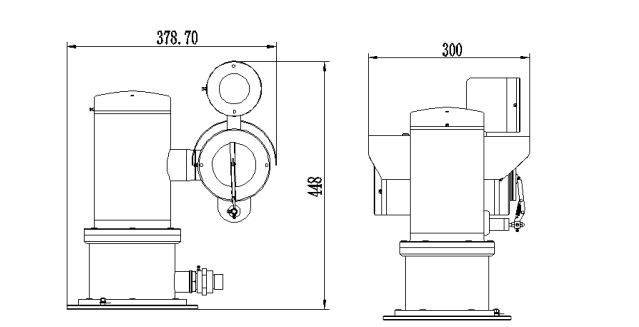

Size

378.7*300*448mm

Net Weight

29kg

Mounted

wall, pole

Wall bracket

CZ6XXBW
