Explosion Proof PTZ Camera

  • Exd II Explosion Proof Cameras with PTZ for Offshore Rigs
Exd II Explosion Proof Cameras with PTZ for Offshore Rigs

Exd II Explosion Proof Cameras with PTZ for Offshore Rigs

  • IP68 protection rated
  • Applicable for Zone 1, 2, 21, 22
  • Stainless steel 304 or 316L enclosure
  • Available withcustomized camera options
  • Description: Exd II Explosion Proof Cameras with PTZ for Offshore Rigs
  • INQUIRY   EMAIL

ZAT610-3 explosion proof cameras with PTZ is designed to protect CCTV cameras in industrial, hazardous area, marine and highly corrosive environments. It load 4.5–135 mm motorized focus/zoom lens with 30x optical zoom to clearly view target area.

ZAT610 is an integrated CCTV camera for auto tracking, with housing,camera,wiper system,pan and tilt. ZAT610 adopts stepping motor and worn gear motor. Auto patrol, mechanical self lock, telephoto speed limit.360°auto tracking, transmission speed 0.1~45°/s.With wiper system, and nanometer self-cleaning front window.


FEATURES:

·304/316L Stainless steel construction
·Highest protection: IP68
·Double ex-proof marking: EXd & DIP
·lower operating temperature: –-25℃~+60℃(optional-45°C~+60℃)
·Stepping motor & Worn gear motor
·Intelligent telephoto speed limits
·360° Horizontal Auto tracking
·±90° Vertical rotating
·256/128 points patrol preset



Certificate

Certificate Mark

Ex dⅡCT6 Gb/ Ex tD A21 IP68 T80℃

Certificate No

CNEx16.2694X

Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

1pcs G3/4 or NPT3/4

Wiper

yes

Electrical

Voltage

AC85VAC265V or DC24Vor AC24V

Power

50W  /70W (with thermostat)

Ambient

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

Pan & Tilt

Horizontal

360°

Horizontal speed

0.1-45°/s

Vertical

-90 to +90°

Cruise Scan

Support

Keep watch

Support

Preset

64/128/255/300

Resume function

Support

Auto Cruise

Support

Auto Scan

Support

Camera

Image Sensor

1/2.8" interline-transfer CMOS

Effective pixel

2MP

Min. Illumination

Color 0.01Lux   B/W: 0.005Lux

Day&night

Auto/ Color/ BW

Optical zoom

30X, 4.5-135mm

Effective Pixels

1920*1080

Angle of View

Horizontal 50.2-2.9 (wide -tele) Vertical 37.9-2.1

MOD

10mm~1500mm(wide -tele)

General

Cable

integrated cable

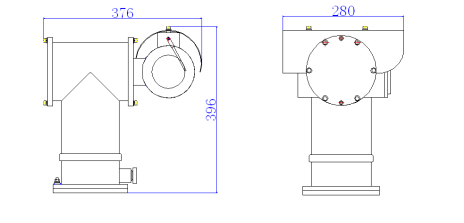

Size

376*280*396mm

Weight

22kg

Mounted

wall, pole

Wall bracket

ZAZ610B
