Explosion Proof Thermal Camera

  • Explosion-Proof PTZ Thermal Camera
Explosion-Proof PTZ Thermal Camera

Explosion-Proof PTZ Thermal Camera

  • Explosion proof certified
  • Applicable for Zone 1, 2, 21, 22
  • Stainless steel 304 or 316L enclosure
  • 640×512
  • Description: Explosion-Proof PTZ Thermal Camera
  • INQUIRY   EMAIL

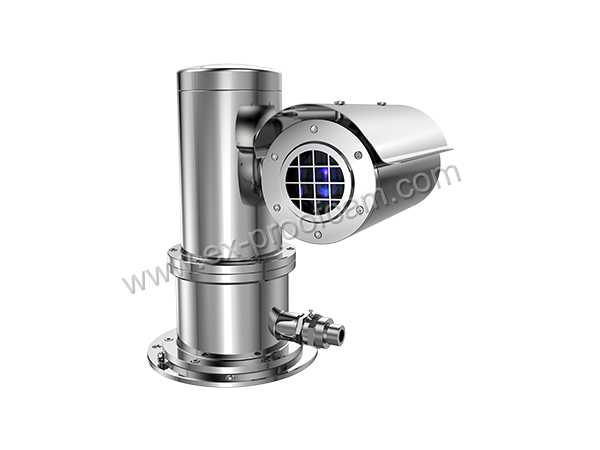

ZAFR6202-B is a explosion-proof ptz thermal camera, which is integrated by explosion proof thermal camera(housing) and pan tilt,it makes install and debug on site convenient. .
The camera uses 304/316L stainless steel to ensure its good explosion proof quality in hazardous areas. This ex-proof PTZ camera is the best solution for  video surveillance and process control in the Oil & Gas, Maritime and Industrial sectors and the area where there is a risk of  explosion as a result of flammable gases or vapours, flammable liquids or combustible dust being occur.


FEATURES:

·640×512 Uncooled Vanadium Oxide Infrared Focal Plane Detector

·Stainless steel 304 or 316L enclosure
·Surface optional electro-polished or painting
·Weather Proof IP68(1.2m/45min)
·Wide voltage input: AC100-240V or AC24V
·Strong tempered glass, fit for hydrofluoric acid area
·Intelligent window defroster design
·Auto temperature adjust kit for harsh environment
·Auto temperature adjust kit for harsh environment
·Intelligent long focal speed limit, fit for long distance monitoring



Certificate

Certificate Mark

Ex d ⅡC T6 Gb/Ex tD A21 IP68 T80℃

Certificate No

CNEx20.1155

Standards

Q/320412 ZAF143-2020

Mechanical

Housing

Stainless steel 304 or 316L

IP

IP682m/2h

Cable thread hole

1pcs M27×1.25 or M25×1.55

Wiper

yes

Electrical

Voltage

AC85VAC265V or AC24V

Power

≤100W (with thermostat)

Optional surge protector

TVS 6000V

Optional within fiber optical cable

Multimode, or signal mode

Ambient

Ambient temperature

-40 to +60℃

Air pressure

80Kpa to 110Kpa

Relative Humidity

≦95% (no condensation)

Lights

Light distance

100m

Light control

Support

Assistant

Communication

support analog video output

485 Communication

Support Pelco-D, Pelco-P

Communicate Rate

2400 to 19200bps

Pan & Tilt

Horizontal

360°

Horizontal speed

0.1-40°/s

Vertical

-90 to +90°

Cruise Scan

Support

Keep watch

Support

Preset

64/128/255/300

Resume function

Support

Auto Cruise

Support

Auto Scan

Support

Optional Alarm

Alarm Input

2-channel/ 7-channel

Alarm Output

1-channel, action with alarm

Intelligent Alarm

Audio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access

Optional Audio

Audio Input

Audio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output impedance: 1KΩ+10%

Audio Output

Line-level impedance 600Ω

Network

Network Interface

1pcs of RJ45, support 10M/100M/1000M

Video Compression

H.264 main profile / MJPEG

Audio Compression

G.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726

Voice Intercom

Support

Stream

Support three streams

Internet Protocol

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP

,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE

Time Display

Support

Standard

ONVIF, CGI, GB/T28181, PISA

IE browser

Support IE7 or above, Google, Firefox, Apple

Security

Password protection, Multiple access control


Thermal Camera

Detector Type

Uncooled Vanadium Oxide Infrared Focal Plane Detector

Resolution

640×512

Lens

4.1mm/5.8mm/9.1mm/13mm/19mm/25mm/35mm/55mm

Pixel pitch

12μm

Response Band

814μm

Pseudo Chromatic

Black /white
Black hot/white hot
Black hot/white hot

Pseudo Color

Support 18 palettes
Support 18 kinds

Temperature measurement range

-20℃+150℃0℃~+550℃

High and low gain mode

High gain, low gain, high and low gain automatic switching

Temperature measurement accuracy

±2℃ or ±2% of reading (whichever is greater) @ ambienttemperature -20℃~60℃

Network protocol

Ethernet/IP, TCP, UDP, SNTP, RTSP, HTTP, ICMP, SMTP, DHCP,

UPnP, PPPOE

Video compression standard

H.264/H.265

Video format

mp4mov

General

Cable

integrated cable

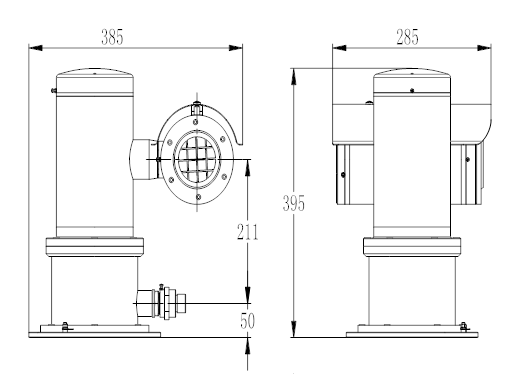

Size

385*285*395mm

Net Weight

30kg

Mounted

wall, pole

Wall bracket

ZAZ6XXB
