Explosion Proof Thermal Camera

  • ZAFR125-D Explosion Proof Thermal Camera Housing

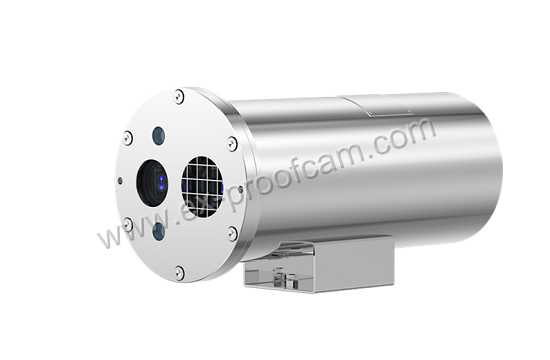

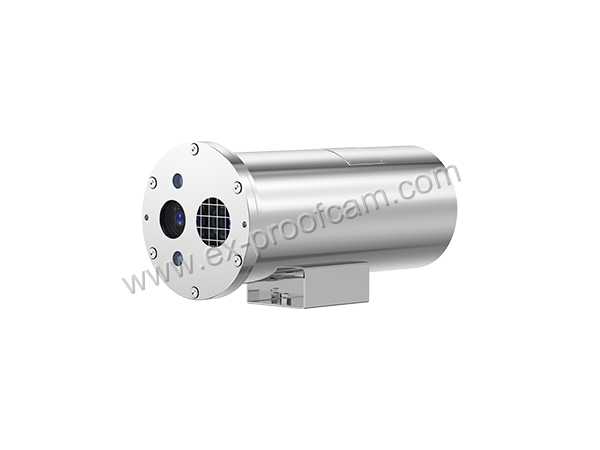

ZAFR125-D Explosion Proof Thermal Camera Housing

ZAFR125-D Explosion Proof Thermal Camera Housing

  • explosion proof certified
  • Applicable for Zone 1, 2, 21, 22
  • Stainless steel 304 or 316L enclosure
  • GE glass
  • Description: ZAFR125-D Explosion Proof Thermal Camera Housing
  • INQUIRY   EMAIL

ZAFR125-D  explosion proof thermal camera housing is designed to protect  thermal and network cameras in such as Chemical factory, petrochemical processing plant, pharmaceutical plant,rig, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.

The explosion proof thermal camera housing is made of stainless 304 or 316L and reach IP68.


FEATURES:

· Stainless steel 304 or 316L
· Enclosure Protection: IP68
· Exd II CT6 Gb/ Ex tD A21 IP68 T80℃
· Applicable for the circumstances of explosive gas,oil, powder,
· Fit for gas zone 1, zone 2, dust zone 21, 22


Certificate

Certificate Mark

Ex d ⅡC T6 Gb/Ex tD A21 IP68 T80℃

Certificate No

CNEx20.0939X

Standards

Q/320412 ZAF141-2020

Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68(2m/2h)

Cable thread hole

2pcs M27×1.25 or M25×1.5

Glass

GE glass

Electrical

Voltage

100240V a.c. or 24V a.c./d.c. or 12V d.c. or PoE+(48V d.c.)

Power

36W25W(PoE)

Optional surge protector

TVS 6000V

Optional within fiber optical cable

Multimode, or signal mode

Ambient

Ambient temperature

-40 to +60℃

Air pressure

80KPa110KPa

Relative Humidity

≦95% (no condensation)

Lights

Lights

30m60100 infrared lights.

Lights Control

Support

General

Cable

integrated cable

Size

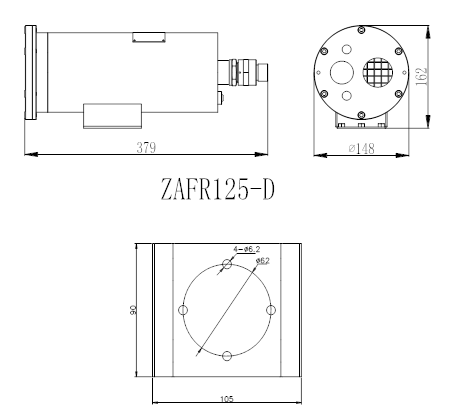

379mm×148mm×162mm

Weight

6.3kg

Mounted

wall, pole

Wall bracket

ZAZ100B
