Heat Resistant Camera Housing

  • ZASC001 Water Cooling  High Temperature Resistant Camera Housing
  • ZASC001 Water Cooling  High Temperature Resistant Camera Housing
ZASC001 Water Cooling  High Temperature Resistant Camera HousingZASC001 Water Cooling  High Temperature Resistant Camera Housing

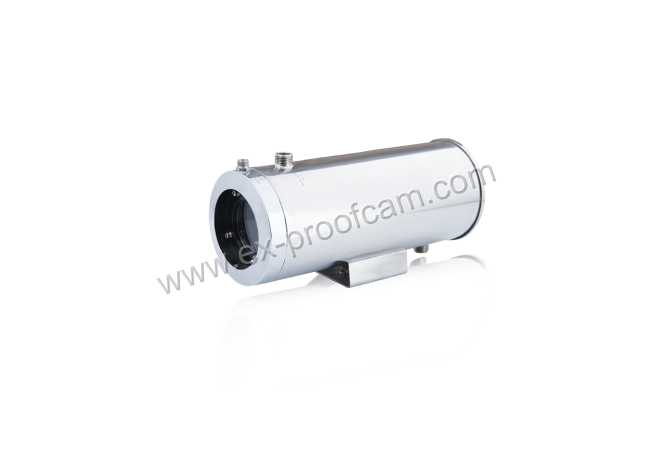

ZASC001 Water Cooling High Temperature Resistant Camera Housing

  • Water cooling
  • Applicable for industrial high temperature environments
  • Stainless steel 304 or 316L enclosure
  • Weather Proof IP66
  • Description:
  • INQUIRY   EMAIL

The ZASC001 water cooling heat resistant camera housing has been designed for use with cameras operating in industrial high temperature environments, like around furnace, foundries, oven, steel&glass processing line. It's commerical type.The housing is made of stainless steel 304 or 316L.The watercooling camera housing inner usable area is 260*80*80mm, which can load zoom camera, varifocus box camera with lens.It can bear high temperature 0 to +250℃ by using Circulate running water.

FEATURES:

·Ingress protection: IP66
·Dual layer of Stainless steel housing
·Strong Tempered window glass
·Water cooling way
·Water cooling(bear-25~150°C)
·Inner size:260*80*80mm
·Net weight:3.5kg
·Mounted on wall or pole


Mechanical

Housing

Stainless steel 304

IP

IP66

Cable thread hole

2pcs G1/2

Electrical

Voltage

AC100VAC240V or DC24Vor AC24V

Power

15W

Ambient

ZASC001

Cooling way

Circulate running water

Temperate resist

0 to +250℃

Cooling media pressure

2800 liter per hour

air output at the front of window

Support

General

Size

356*138*158mm

Housing inner size

260*80*80mm (L*W*H)

Weight

3.5kg

Mounted

wall, pole

Wall bracket

ZAZ104B
