Heat Resistant Camera Housing

  • ZAFC106-S Water Cooling Explosion Proof Camera Housing

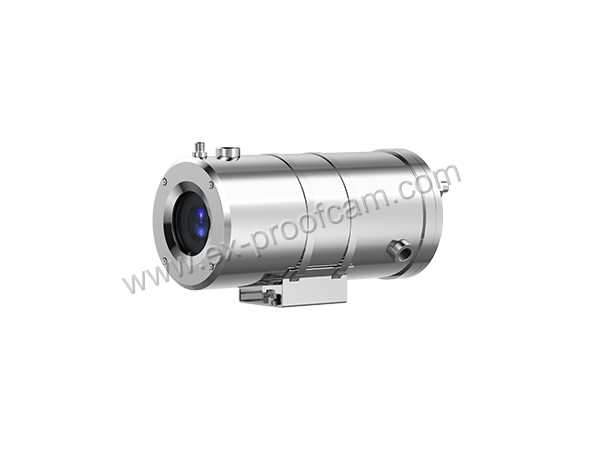

ZAFC106-S Water Cooling Explosion Proof Camera Housing

ZAFC106-S Water Cooling Explosion Proof Camera Housing

  • WATER COOLING
  • Applicable for Zone 1, 2, 21, 22
  • Stainless steel 304 or 316L enclosure
  • Weather Proof IP68
  • Description: ZAFC106-S Water Cooling Explosion Proof Camera Housing
  • INQUIRY   EMAIL

ZAFC106 water cooling explosion proof camera housing made of double-layer stainless steel tube,  Widely used in like furnace, power plant, glass and steel processing line.It cooled by circular cooling water.Max can bear 250 degree

It is explosion proof certified and fit for bullet camera, zoom cameras.


FEATURES:

· CNEX certificate
·Ingress protection: IP68
·Double ex-proof marking: EXd & DIP
·Dual layer of Stainless steel housing
·Nano-meter self-cleaning window With Tempered glass
·Water cooling(bear 0~250°C)
·Mounted on wall or pole



Certificate

Certificate Mark

ExdⅡC T5 Gb/Ex tD A21 IP68 T95°C

Certificate No

CNEx19.0668

Standards

Q/320412ZAF015-2018

Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

2pcs G3/4 or NPT3/4

Electrical

Voltage

AC85VAC265V or DC24Vor AC24V

Power

15W

Ambient

Ambient temperature

water cooling 0 to +250℃

Water cooling media

pressure ≥0.1MPa

Air cooling media

 pressure 0.1-0.2 MPa

Ambient pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

General

Size

374*163*185mm

Housing inner size

260*75*75mm

Weight

11.3kg

Mounted

wall, pole

Wall bracket

ZAZ100B
