Explosion Proof IR Camera

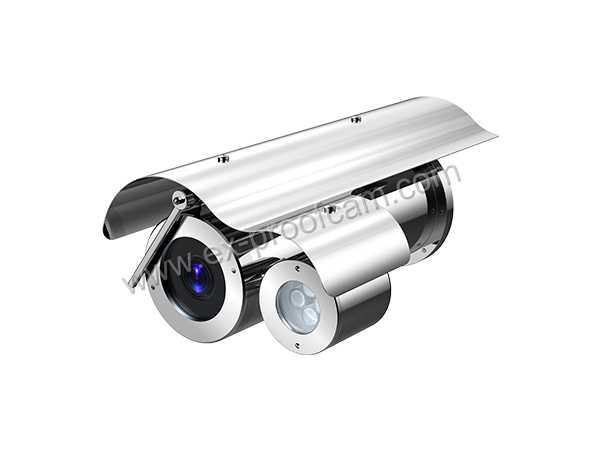

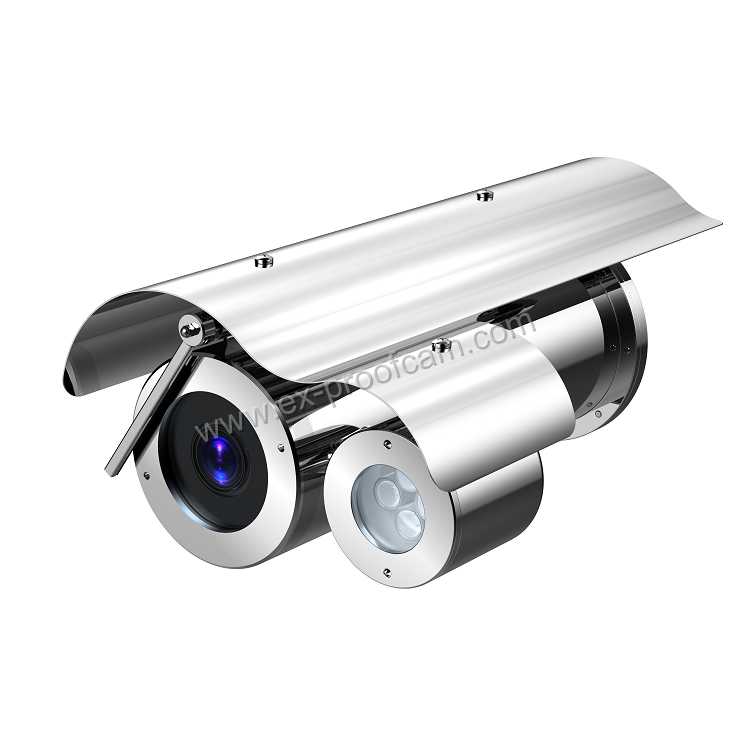

ZAF1032-D 2MP HD VF Explosion Proof IR Camera

Explosion Pooof Certified
2MP motorized zoom lens
Electro-polished Stainless Steel
IR distance Max 100M
Description: ZAF1032-D 2MP HD VF Explosion Proof IR Camera
INQUIRY EMAIL

ZUOAN ZAF1032-D explosion proof ir camera with wiper is a stainless steel camera station specifically designed for Hazardous Area applications.

It is equipped with the latest generation IP day/night camera,,load with 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens camera. sunshield, heater/demister and wiper.The housing is made of Electro-polished Stainless Steel 304 or 316L. IP68 weatherproof rating, 0-20m, 20-60m, 60-100m infrared lights optional.

FEATURES:

·Explosion proof Approved;

·Electro-polished Stainless Steel 304 or 316L

·Highest protection: IP68

·Infrared lights for night vision:0-20m, 20-60m, 60-100m infrared lights optional.

·Fitted with sunshield, heater/demister, wiper

Certificate

Certificate Mark	Ex d ⅡC T6 Gb / Ext D A21 IP68 T80℃
Standards	CNEx16.0708

Mechanical

Housing	Stainless steel 304 or 316L
Surface	Optional electro-polish or painting
Ingress protection	IP68 (1.2m/ 45min)
Cable thread hole	M25×1.5 (or M27*1.25)

Electrical

Voltage	AC100V～AC240V or AC24V
Power	15W/25W (with thermostat)

Ambient

Ambient temperature	-25°～+60°/-40℃～+60℃
Air pressure	80Kpa to 110Kpa
Relative Humidity	≦95% (no condensation)

IR Lights

Lights	0-20m, 20-60m, 60-100m infrared lights
Lights Control	Support

Camera

Image Sensor	1/2.7", 2.0 megapixel,progressive scan,CMOS
Effective pixel	2MP
Min. Illumination	0.001Lux @(F1.2,AGC ON), 0 Lux with IR
Day&night	Auto/ Color/ BW
Lens	2.8~ 12mm,motorized zoom lens
Effective Pixels	1920*1080
Angle of View(H)	112.7° ~ 28.1°
Angle of View(V)	60.1° ~ 15.4°
Angle of View(O)	146.5° ~ 33.2°
