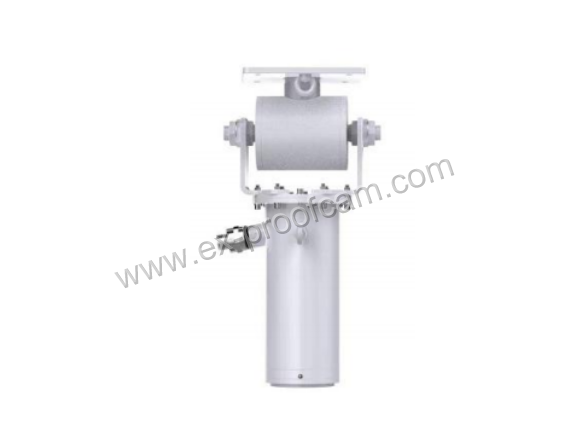

ZAZN02 Crane Damping CCTV Camera

Vibration resistance
Applicable for Zone 1, 2, 21, 22
Stainless steel 304 or 316L enclosure
Watertight IP68
Description: ZAZN02 Crane Damping CCTV Camera
INQUIRY EMAIL

Zuoan ZAZN02 Crane Camera is a sturdy 20X/30X optical zoom camera with an integrated oil damped bracket. This load view camera can be used in serial vision solutions on for telescopic cranes, top cranes, RT-cranes, well drilling cranes and various harbor cranes. The camera is shock and vibration-proof, 100% waterproof, has heated lens glass and provides the best possible image in all harsh conditions.

The camera with the integrated oil damped bracket is designed for usage on cranes to have a camera permanently pointed verticaly downwards. The damper absorbs sudden movements and procures stability to all Zuoan cameras. Others have to be checked to determine the position of their centre of gravity.

Mechanical

Housing	Stainless steel 304 or 316L
IP	IP68
Cable thread hole	2pcs G3/4 or NPT3/4
Stable type	oil pressured type
Impact speed	5m/s
Swing angle	≤2.5°
Return back time	≤1.5s

Electrical

Voltage	AC100-240V, AC24V or POE
Power	8W

Ambient

Ambient temperature	-25 to +60℃
Air pressure	80Kpa to 106Kpa
Relative Humidity	≦95% (no condensation)

Network

Network Interface	1pcs of RJ45, support 10M/100M/1000M
Video Compression	H.264 main profile / MJPEG
Audio Compression	G.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726
Voice Intercom	Support
Stream	Support three streams
Internet Protocol	IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP ,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE
Time Display	Support
Standard	ONVIF, CGI, GB/T28181, PISA
IE browser	Support IE7 or above, Google, Firefox, Apple
Security	Password protection, Multiple access control

Network Camera

Image Sensor	1/2.8" interline-transfer CCD
Effective pixel	1.3MP, 2MP,
Lens	4.7-94mm (20X), 4.5-135mm (30X)
Min. Illumination	Color 0.05Lux B/W: 0.01Lux
Day&night	Auto/ Color/ BW
S/N ratio	＞52dB（AGC off）
Gain	off/ lower/ higher
White Balance	Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp
3D DNR	Support
BLC	ON/OFF
Image setting	Mirror, Saturation, Brightness, Contrast, Sharpness adjustable
Optical zoom	20X / 30X
