Mini Explosion Protected Camera

  • 2MP 4mm Mini Explosion Protected  Camera With IR

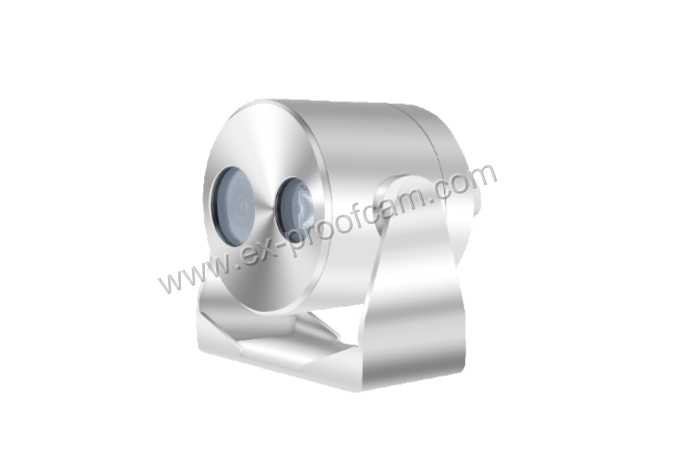

2MP 4mm Mini Explosion Protected  Camera With IR

2MP 4mm Mini Explosion Protected Camera With IR

  • 1080p @ 60fps
  • Applicable for Zone 1, 2, 21, 22
  • Stainless steel 304 or 316L enclosure
  • Weather Proof IP68
  • Description:
  • INQUIRY   EMAIL

ZAF109 mini explosion ptotected camera is a mini designed, integrated CCTV camera, with stainless steel housing, infrared light camera.get double EXd & DIP explosion proof certifications for hazardous area, fit for gas zone 1, zone 2; Dust zone 21, zone 22. Special for hazardous area with explosive gas, oil, chemicals, metal powders, grain powders.

FEATURES:

·Highest protection: IP68
·Double ex-proof marking: :Ex d & Ex tD
·Stainless steel housing
·Power: POE or DC12V
·Temperated Window glass: 8mm
·Manometer self-cleaning window
·Infrared array light for night vision
·Within analog or network camera
·Manual adjustable viewing angle


Certificate

Certificate Mark

ExdⅡC T6 Gb/ Ex tD A21 IP68 T80

Certificate No

CNEx16.2526

Standards

Q/320412 ZAF033-2016

Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

1pcs G3/4 or NPT3/4

Electrical

Voltage

DC24V or POE power supply

Power

8W

Ambient

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

Lights

Light distance

20-30m

Camera

Image Sensor

1/2.8" COMS, 1/3 COMS

Effective pixel

1.3MP, 2MP

Min. Illumination

0.01Lux @(F1.2, AGC ON) B/W: 0Lux with IR

Lens

4mm @ F2.0, view angle:85° (6mm, 8mm, 12mm)

Day& Night

Auto ICR

WDR

120dB

3D DNR

Support

BLC

ON/OFF

Image setting

Mirror, Saturation, Brightness, Contrast, Sharpness adjustable

General

Cable

integrated cable

Size

Φ150*168mm

Weight

4kg

Mounted

wall, pole

Wall bracket

ZAZ109B
