ATEX Explosion Proof Camera

  • ATEX 2mp 30x Explosion Proof PTZ Camera With IR Illumination

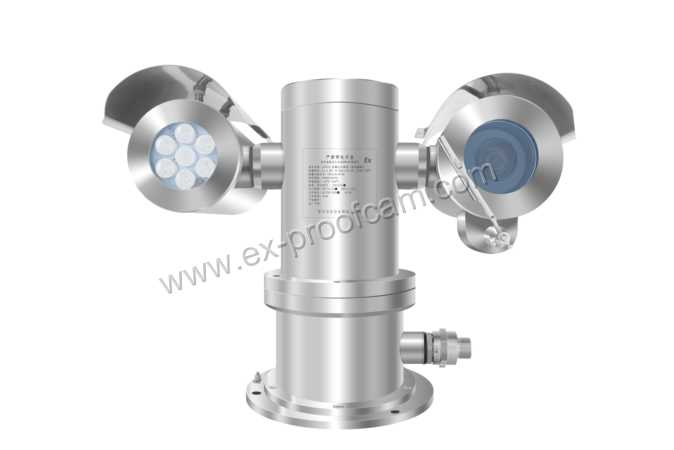

ATEX 2mp 30x Explosion Proof PTZ Camera With IR Illumination

ATEX 2mp 30x Explosion Proof PTZ Camera With IR Illumination

  • ATEX, IECEx Certified
  • Applicable for Zone 1, 2, 21, 22
  • Stainless steel 304 or 316L enclosure
  • IR distance 200M
  • Description:
  • INQUIRY   EMAIL

CZ610-A is a ZUOAN designed classic explosion proof integrated ptz camera, which is integrated by explosion proof camera(housing)、pan tilt、decoder and wiper,it makes install and debug on site convenient. .The explosion proof ptz camera can apply for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. It’s applicable for refining and chemical industry, oil & gas production, fireworks production, grain production and storage, petrol station and so on.


FEATURES:

·ATEX, IECEx Approved;
·Applicable for Gas Zone 1, Zone 2,Dust Zone 21, 22.
·Certified standards IEC/EN60079 (2014)
·Stainless steel 304 or 316L enclosure
·Surface optional electro-polished or painting
·Weather Proof IP68(1.2m/45min)
·Wide voltage input: AC100-240V or AC24V
·Infrared lights, intelligent day/night vision
·Strong tempered glass, fit for hydrofluoric acid area
·Intelligent window defroster design
·Auto temperature adjust kit for aggressive area
·High precision wiper , support user-defined
·Auto temperature adjust kit for aggressive area
·Symmetrical balancing design
·Intelligent long focal speed limit, fit for long distance monitoring


Certificate

ATEX Certificate Mark

Ⅱ2G Ex db op is ⅡC T6 Gb,

Ⅱ2D Ex tb op is ⅢC T80 ºC Db

Certificate

Presafe 17 ATEX 11328X, IECEx PRE 18.0030X

Standards

IEC/EN60079

Mechanical

Housing

Stainless steel 304 or 316L

Surface

Optional electro-polish or painting

Ingress protection

IP68 (1.2m/ 45min)

Cable thread hole

M25×1.5 (or M27*1.25)

Electrical

Voltage

AC100VAC240V or AC24V

Power

50W/70W (with thermostat)

Optical Video signal

1-way video output

Optional network signal

RJ45

Optical Audio

1-way input, 1-way output

Optical Alarm

2-way alarm input, 1-way alarm output

Address code:

0/1

Night vision lights

200m distance

Trail cable

2m integrated cable

Ambient

Ambient temperature

-25°+60°/-40℃+60℃

Air pressure

80Kpa to 110Kpa

Relative Humidity

≦95% (no condensation)

Communication

Communication type

RS485

Protocol

Pelco-D, Pelco-P

Communicate Rate

2400~19200bps adjustable

485 Communication

Support

Pan & Tilt

Horizontal

360°

Horizontal speed

0.1-45°/s

Vertical

-90 to +90°

Cruise Scan

Support

Keep watch

Support

Preset

64/128/255/300

Auto Scan

Support


Camera

Image Sensor

1/2.8" interline-transfer CCD

Effective pixel

2MP

2MP

Lens

4.7-94mm, 20X optical

4.5-135mm, 30x optical

Aperture Range

F1.6-F3.5

F1.6-F4.4

Angle of view

61.4-29 degree (wide -tele)

65.1-2.34 degree (wide -tele)

Min. Illumination

Color 0.05Lux   B/W: 0.01Lux

Day&night

Auto/ Color/ BW

S/N ratio

52dBAGC off

Gain

off/ lower/ higher

Digital Zoom

12X

White Balance

Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp

3D DNR

Support

BLC

ON/OFF

Image setting

Mirror, Saturation, Brightness, Contrast, Sharpness adjustable

General

Size

511mm×295mm×420mm

Net Weight

37kg

Mounted

wall, pole

Wall bracket

CZ6XXBW
