Explosion Proof Camera Housing

  • Zuoan Explosion Proof Cameras housing with sunshield

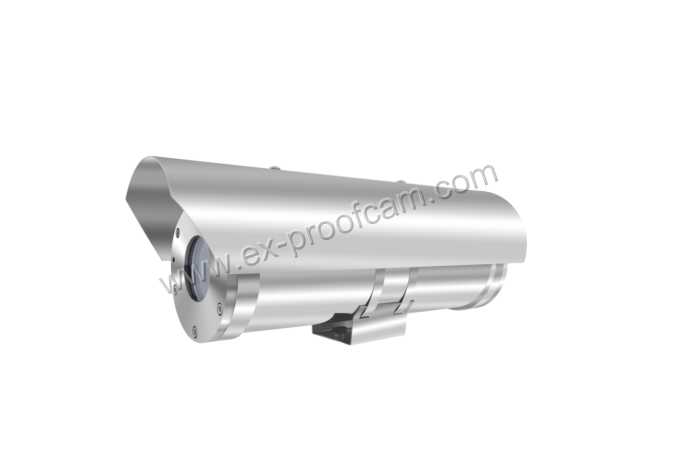

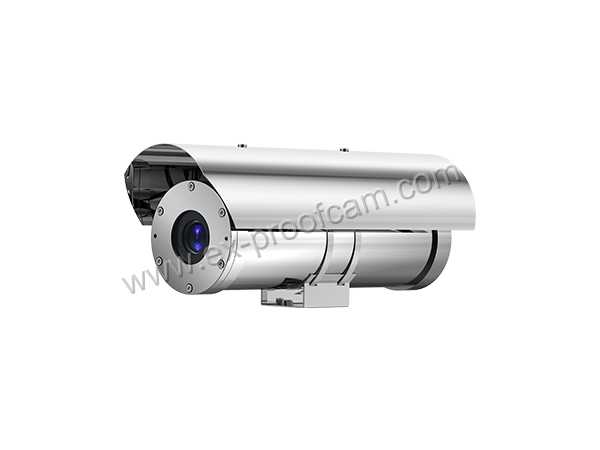

Zuoan Explosion Proof Cameras housing with sunshield

Zuoan Explosion Proof Cameras housing with sunshield

  • Explosion proof Certified
  • Applicable for Zone 1, 2, 21, 22
  • Stainless steel 304 or 316L enclosure
  • Weather Proof IP68
  • Description: Zuoan Explosion Proof Cameras housing with sunshield
  • INQUIRY   EMAIL

ZAF100-B explosion proof camera housing use Stainless steel 304 or 316L  to protect CCTV cameras in hazardous area, marine and harsh environments. The inner cameras can be analog camera, network camera, or thermal imaging camera.The design of the explosion proof camera housing ensures the best protection from external agents and and an easy installation and maintenance service.The sun-shield protects the housing from the sunlight, from heat and dirt.


FEATURES:

· Stainless steel 304 or 316L
· Enclosure Protection: IP68
· Explosion proof certified
· Exd II CT6 Gb/ Ex tD A21 IP68 T80℃
· Fit for gas zone 1, zone 2, dust zone 21, 22 (class I, Division I, II)
· Temperature range: -25 to 65 ℃

· Inner space: 210*80*80mm

Certificate

Certificate Mark

Ex dⅡCT6 Gb/ Ex tD A21 IP68 T80

Certificate No

CNEx17.1261

Standards

Q/320412ZAF001-2017

Mechanical

Housing

Stainless steel 304 or 316L

IP68

IP68

Cable thread hole

2pcs G3/4 or NPT3/4

Sun-shield

Yes

Wiper

No


Ambient

Ambient temperature

-25 to +60℃ / -45 to +80

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)


General

Inner space

210*80*80mm

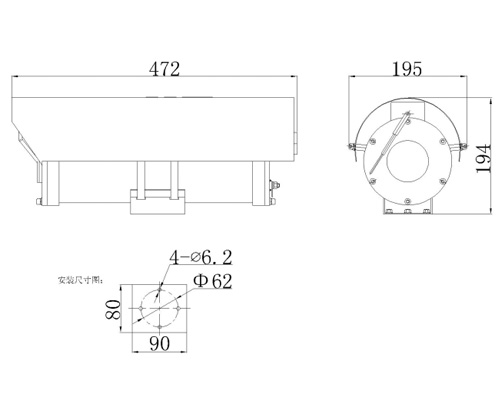

Size

472*195*194mm

Weight

11.5kg

Mounted

wall, pole

Wall bracket

ZAZ100B
