Explosion Proof Camera Housing

  • ZAF1032-B Explosion Proof Camera Housing with sunshield
  • ZAF1032-B Explosion Proof Camera Housing with sunshield
ZAF1032-B Explosion Proof Camera Housing with sunshieldZAF1032-B Explosion Proof Camera Housing with sunshield

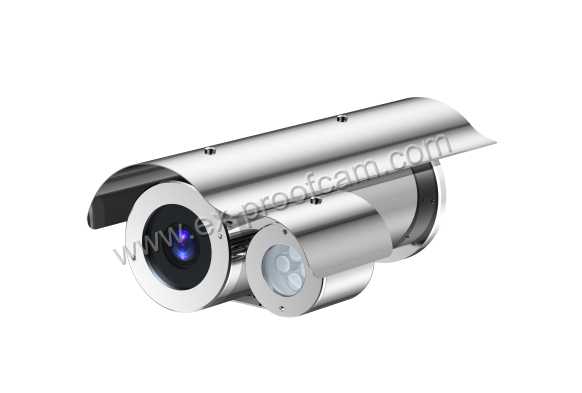

ZAF1032-B Explosion Proof Camera Housing with sunshield

  • Explosion Pooof Certified
  • Applicable for Zone 1, 2, 21, 22
  • Stainless steel 304 or 316L enclosure
  • IR distance Max 100M
  • Description: ZAF1032-B Explosion Proof Camera Housing with sunshield
  • INQUIRY   EMAIL

ZAF1032-C is a ZUOAN matured explosion proof camera housing with IR,Available with customized camera options.The explosion proof network camera can apply for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exist, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. It’s applicable for refining and chemical industry, for Oil & Gas industry, Onshore, and Offshore Rigs and so on.

The housing is made of stainless 304 or 316L. The inner usable space for camera is 210*75*75mm,
IP68 weatherproof rating, 0-20m, 20-60m, 60-100m infrared lights optional.



FEATURES:
·Explosion proof Approved;
·304/316L Stainless steel with sunshield
·Highest protection: IP68
·Double ex-proof marking
·Strong tempered window glass
·Infrared lights for night vision:0-20m, 20-60m, 60-100m infrared lights optional.
·Iinner usable space for camera is 210*75*75mm
·Mounted on wall or pole


Certificate

Certificate Mark

Ex d ⅡC T6 Gb / Ext D A21 IP68 T80℃

Standards

CNEx16.0708

Mechanical

Housing

Stainless steel 304 or 316L

Surface

Optional electro-polish or painting

Ingress protection

IP68 (1.2m/ 45min)

Cable thread hole

M25×1.5 (or M27*1.25)

Electrical

Voltage

AC100VAC240V or AC24V

Power

15W/25W (with thermostat)

Ambient

Ambient temperature

-25°+60°/-40℃+60℃

Air pressure

80Kpa to 110Kpa

Relative Humidity

≦95% (no condensation)

IR Lights

Lights

0-20m, 20-60m, 60-100m infrared lights

Lights Control

Support

General

Model

ZAF1032-B

Inner usable area for camera

210*75*75mm

Net Weight

12.5kg
