Explosion Proof Camera Housing

  •  Stainless Steel Explosion Proof Camera housing for cctv camera

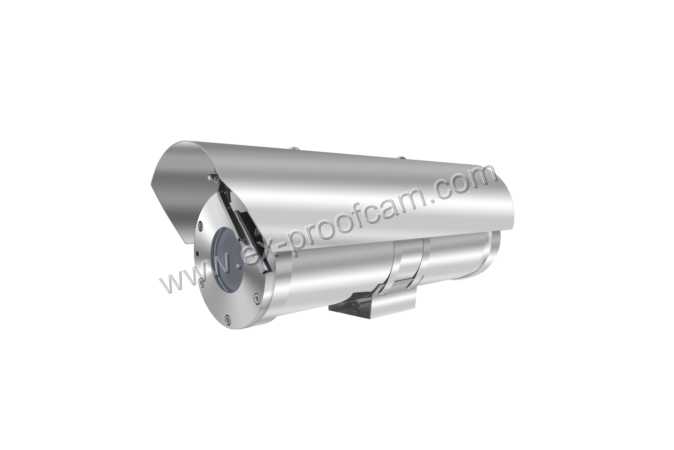

 Stainless Steel Explosion Proof Camera housing for cctv camera

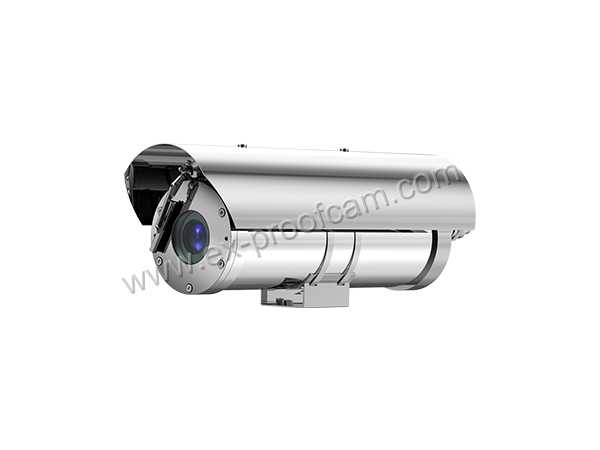

Stainless Steel Explosion Proof Camera housing for cctv camera

  • explosion proof
  • Applicable for Zone 1, 2, 21, 22
  • Stainless steel 304 or 316L enclosure
  • Weather Proof IP68
  • Description: Stainless Steel Explosion Proof Camera housing for cctv camera
  • INQUIRY   EMAIL

ZAF100-A series explosion proof camera housing adopts Stainless steel 304 or 316L material to protect CCTV cameras in Extreme area, like Hazardous Areas at Marine(with high corrosive salt), offshore, Oil & Gas and industrial locations (IIB and IIC).  CCTV cameras can be analog camera, network camera, or thermal imaging camera.The design of the explosion proof camera housing ensures the best protection from external agents and and an easy installation and maintenance service.The sunshield protects the housing from heat and dirt, while the heater demoisturizes the housing front window if needed.


FEATURES:

· Stainless steel 304 or 316L material
· Enclosure Protection: IP68
· Exd II CT6 Gb/ Ex tD A21 IP68 T80℃
· Fit for gas zone 1, zone 2, dust zone 21, 22 (class I, Division I, II)
· Optional power input: DC12V, AC24V, AC100~240V
· Temperature range: -25 to 65 ℃


Certificate

Certificate Mark

Ex dⅡCT6 Gb/ Ex tD A21 IP68 T80

Certificate No

CNEx17.1261

Standards

Q/320412ZAF001-2017

Mechanical

Housing

Stainless steel 304 or 316L

IP68

IP68

Cable thread hole

2pcs G3/4 or NPT3/4

Sun-shield

Yes

Wiper

Yes


Ambient

Ambient temperature

-25 to +60℃ / -45 to +80

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)


General

Inner space

210*80*80mm

Size

472*195*194mm

Weight

12.9kg

Mounted

wall, pole

Wall bracket

ZAZ100B
