Explosion Proof Camera Housing

  • ZAF1032-A Explosion-proof Camera Enclosure with IR
  • ZAF1032-A Explosion-proof Camera Enclosure with IR
ZAF1032-A Explosion-proof Camera Enclosure with IRZAF1032-A Explosion-proof Camera Enclosure with IR

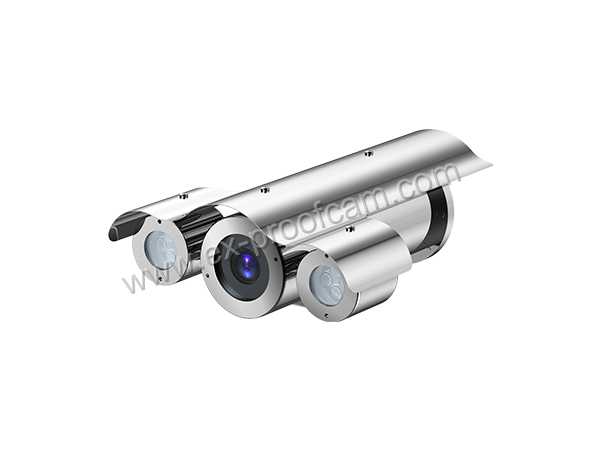

ZAF1032-A Explosion-proof Camera Enclosure with IR

  • Explosion proof Certified
  • IR 100-200M
  • Stainless steel 304 or 316L enclosure
  • Weather Proof IP68
  • Description: ZAF1032-A Explosion-proof Camera Enclosure with IR
  • INQUIRY   EMAIL

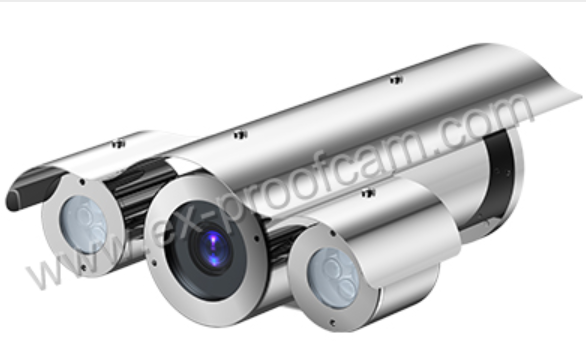

Zuoan ZAF1032-A Explosion-proof Camera Enclosure. The IR distance can max reach 200M.
The housing is completely made of stainless steel 304 or 316L. Stainless steel 316L can gurantee the anti corrosion for sea environment.It can load fixed lens, motorized zoom lens camera according to customer demand.

The explosion-proof camera enclosures are used in explosive and hazardous ares throughout the world. They are designed to meet the strictly requirements of explosion-proof and dust-ignition- proof electrical equipment for installation and use in hazardous locations. These enclosures are also waterproof and dust-tight.

FEATURES:

· Stainless steel 304 or 316L
· Enclosure Protection: IP68
· Exd II CT6 Gb/ Ex tD A21 IP68 T80℃
· Fit for gas zone 1, zone 2, dust zone 21, 22

· With lights for night vision:100-200m

· Inner usable area for camera:210*75*75mm

Certificate

Certificate Mark

ExdⅡC T6 Gb / Ext D A21 IP68 T80℃

Certificate No

CNEx16.0708

Standards

Q/320412ZAF032-2016

Mechanical

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

2pcs G3/4 or NPT3/4

Sun-shield

Yes

Electrical

Voltage

AC85VAC265V or DC24Vor AC24V

Power

15W/25W (with thermostat)

Surge Protect

Optional, TVS6000V surge protect

Optical Fiber output

Optional, multimode or single mode

Ambient

Ambient temperature

-25 to +60℃ / -45 to +80℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

Lights

Lights

100-200m infrared lights

Lights Control

Support


General

Cable

integrated cable

Size

367*335*170mm

Inner usable area for camera


Weight

210*75*75mm


13.9kg

Mounted

wall, pole

Wall bracket

ZAZ100B
